FRITZ!Box 5690

Technical specifications

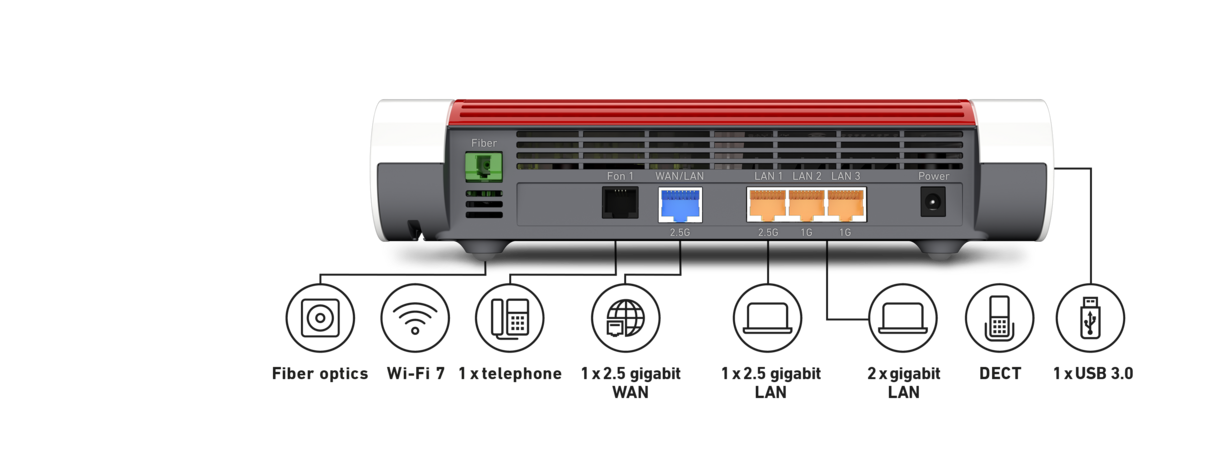

Interfaces

  • 1 x fibre optic connection (direct connection to GPON or AON networks)
  • 1 x 2.5 gigabit WAN port, can also be used as a 2.5 gigabit LAN port (IEEE 802.3bz standard, NBASE-T)
  • 1 x 2.5 gigabit LAN port
  • 2 x gigabit LAN ports
  • Wi-Fi 7 on 2.4 and 5 GHz
  • Integrated DECT base station for up to 6 cordless telephones
  • 1 a/b port (TAE/RJ11) for an analogue telephone, answering machine, or fax
  • 1 x USB 3.0 port for USB storage media in the network

Connection / Network

  • Fibre optics router with firewall/NAT, DHCP server, DynDNS client, UPnP AV
  • Suitable for gigabit-capable passive optical networks (GPON, ITU-T G.984) and active optical networks (AON, IEEE 1000BX-10)
  • Can also connect to a fibre optic modem (ONT)
  • Backup connection possible via USB mobile network dongle
  • MyFRITZ! – access your own FRITZ!Box safely from anywhere
  • Supports IPv6
  • Stateful Packet Inspection Firewall with port sharing for secure web surfing
  • Secure remote access, LAN-to-LAN linkup, and dial-in to the company network with VPN (WireGuard and IPSec)
  • Security wizard with diagnostic tool
  • Wake on LAN via the internet
  • Comprehensive parental controls, push service

Fibre

AON

  • ITU-T G.652; IEEE 802.3ah-2004 1000BASE-BX10
  • LC-APC 8°
  • Wavelength: TX 1310 nm, RX 1480 to 1580 nm
  • Full-duplex transmission
  • Transmitter power: -9 to -3 dBm
  • Reception range: -3 to -23 dBm
  • Range: 10 km
  • Support for SFF-8472
  • Class 1 laser

GPON

  • Suitable for ITU-T G.984.2/984.5 GPON
  • LC/APC 8°
  • Wavelength: TX 1310 nm, RX 1490 nm (with filter)
  • Suitable for rogue detection
  • Transmitter power: 0.5 to 5 dBm
  • Reception range: -3 to -28 dBm
  • Range: 20 km
  • Support for SFF-8472
  • Class 1 laser

Wi-Fi

  • Wi-Fi 7
  • 5 GHz: up to 5760 Mbit/s; 2.4 GHz: up to 688 Mbit/s
  • Mesh Wi-Fi – simply combine several FRITZ! products into one intelligent system and extend the home network Find out more: en.fritz.com/mesh
  • Compatible with the IEEE 802.11a/g/n/ac/ax/be Wi-Fi standards
  • Wi-Fi network encryption with WPA3/WPA2
  • Wi-Fi Protected Setup (WPS)
  • Wi-Fi guest access – secure surfing for friends and visitors
  • Wi-Fi auto channel: Automated search for an interference-free Wi-Fi channel
  • Wi-Fi eco mode for optimum performance at minimum power consumption
  • Wi-Fi can be turned on/off by button

Smart home / media

  • Smart home features for energy, heating, lighting, and more (DECT ULE)
  • Supports up to 50 smart home devices
  • Control your FRITZ! Smart Home via the FRITZ!Box interface, FRITZ!Fon, FRITZ!DECT smart switch or FRITZ!App Smart Home
  • Ideal for IPTV and streaming music and videos
  • FRITZ!NAS: Memory shared by all data in the home network
  • Simply and securely share files with friends and family
  • Media server distributes music, photos, and videos in the home network (DLNA/UPnP AV)
  • Also supports online storage, web radio, and podcasts

Telephony

  • Telephone system with DECT base station for up to six cordless telephones
  • Voice transmission encrypted upon delivery
  • Port for an analogue phone, answering machine or fax
  • Supports HD telephony for natural sound
  • DECT Eco: Frequency channel switches off for maximum ergonomics
  • Five integrated answering machines including email forwarding (voice-to-mail)
  • Manage telephone contacts locally or online (Google, Apple iCloud etc.)
  • Fax function including email forwarding (fax-to-mail)
  • Call diversion, internal calls (intercom), three-way conferencing, call transfer
  • Call blocking, alarm, baby monitor, VIP calls, and Do not Disturb
  • Internet telephony SIP-compliant in accordance with RFC 3261
  • Register IP telephones (LAN/Wi-Fi) SIP-compliant
  • FRITZ!App Fon for landline calls via your smartphone

FRITZ!OS

  • "fritz.box": Clear, easy-to-use browser-based user interface
  • User interface optimized for smartphones and tablets (responsive design)
  • Handy FRITZ!Apps for your smartphone: MyFRITZ!App for FRITZ! convenience on the go, and FRITZ!App Wi-Fi, the clever Wi-Fi helper
  • Help function with full-text search
  • Push service by email for information about events in the home network
  • Security wizard with diagnostic tool
  • Free updates for new features and security, auto-updates if desired

Package contents

  • FRITZ!Box 5690
  • Power adapter
  • 4-meter fibre optic cable (LC/APC-LC/APC)
  • 1.5-meter LAN cable
  • Quick Guide

Device properties

  • Dimensions (W x H x D): 254 x 63 x 191 mm
  • Average power consumption: 8 watts

Warranty

  • 5-year manufacturer's warranty for end customers, as per the warranty conditions

Article number

  • 20003096
